Granular Bamboo Based Activated Carbon For Water Treatment

Granular Bamboo Based Activated Carbon For Water Treatment

Bamboo charcoal activated carbon is the raw material bamboo after high temperature carbonization, continue to be placed in the activation furnace for high temperature catalysis or chemical catalysis (activation), and then pickling (or washing), drying made.
The product has developed pore structure, large specific surface area, high wear resistance, fast adsorption speed, large adsorption capacity, easy desorption, and can be recycled repeatedly.
It can be used in fitness skin care, home textile supplies, automotive supplies, crafts, decoration materials, bamboo charcoal pottery, bamboo charcoal food and other aspects.

Product Introduction

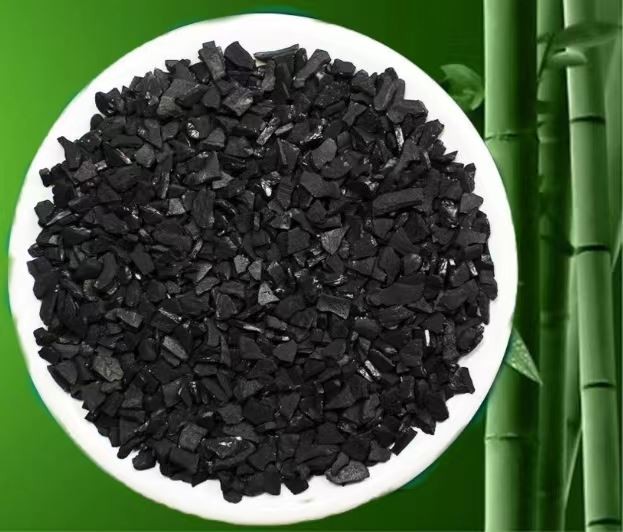

Bamboo Based Granular Activated Carbon



Bamboo charcoal activated carbon is the raw material bamboo after high temperature carbonization, continue to be placed in the activation furnace for high temperature catalysis or chemical catalysis (activation), and then pickling (or washing), drying made. The product has developed pore structure, large specific surface area, high wear resistance, fast adsorption speed, large adsorption capacity, easy desorption, and can be recycled repeatedly.



20230815102644



The diameter of micropores on the surface of activated carbon is mostly between 2-50nm. Even a small amount of activated carbon has a huge surface area. The surface area per gram of activated carbon is 500-1500m2. Almost all applications of activated carbon are based on this characteristic of activated carbon.

Bamboo charcoal activated carbon is dominated by micropores, and the pore diameter is divided into three categories: large pores (≥50nm), accounting for about 10-30% of the total pore volume, micropores (≤2nm) account for about 60-90% of the total pore volume, and medium pores (2nm≤φ≤50nm), also known as transition holes (2nm≤φ≤50nm), accounting for about 5-7% of the total pore volume, and the average pore diameter is about 1.5nm.



Hd34484dbb7e244228db142c8f178c18cu



Bamboo charcoal activated carbon has a large specific surface area and strong adsorption capacity. Bamboo charcoal activated carbon have a widely used, after scientific processing, it can be used in fitness skin care, home textile supplies, automotive supplies, crafts, decoration materials, bamboo charcoal pottery, bamboo charcoal food and other aspects.

The particle shape is full and uniform, which greatly improves the wear resistance of the product. After entering the factory, there is no need for pre-grinding, and it can be used directly after washing with water.



 H1fe9865feb7943a788563c5e0ca3c31dvjpg960x960H73518c787add4e0a87ffd4ebce63735cS

Granular Bamboo Activated Carbon For Gas/ Water Purification
Specification Top quality product
size 6x12mesh,8x16mesh,0.4-0.8mm,1-2mm,2-4mm,4-8mm
Iodine adsorption value 1000-1300
Moisture below 5%
Packing denstity 0.35-0.45%
Methylene Blue 8-10 ml/g
C.T.C(%) ≥60
K value(kg/tonne) 28
R value(%) 55
Hardness(%) ≥98
Apparent density(kg/m³) 450--500



There are many oxygen containing functional groups on the surface of activated carbon, Activated carbon can also be impregnated with chemical substance to produce impregnated activated carbon.

We produce bamboo granular activated carbon of different diameters, select high-quality bamboo as the base material for treatment, carbonization and activation process, resulting in numerous small holes on the surface of activated carbon. Even a small amount of activated carbon has a huge surface area.



    H28246e4b5861439fa97a53c24943e161xjpg960x960



Application areas :



Thus,it is not only used as an excellent adsorbent but also used as a catalyst and catalyst carrier and widely used in industrial production ,agriculture ,environmental protection, national defence industry ,water purification ,decolorization of pharmaceutical intermediates and raw material intermediates ,air purification.etc



7569EYHSqrFQIsmall



1.Household activated carbon:air purification,furniture deodorization,car deodorization;


2.Wastewater treatment plant exhaust adsorption;


3.Drinking water treatment;


4.Powder plant water pretreatment;


5.Pretreatment of wastewater recycling;


6.Biological wastewater treatment;


7.Toxic wastewater treatment;


8.Solvent recovery(because activated carbon can adsorb organic solvents);

11Hc433d5f69e2a49e9ae320c8e9e01c5d5D20230815110300



9.Chemical catalyst carrier;      10.gold extraction;


11.Chemical stroage exhaust purification;       12.Automobile exhaust purification;

13.Impurity removal of printing ink;

14.Liquid phase adsorption:For example,in the sugar industry,activated carbon adsorption is used to decolorize sugar liquid;in the chemical industry,activated carbon is used to decolorize organic substances,ect.

Produce line :

-1) Grinding :crush coconut shell to small pieces

-2)Extruding:if you want columnar activated carbon, extruding activated carbon to pellets.

-3) Carbonation:carbonized the pellets or coconut shell powder to carbon.

-4) Activation:Physical method and chemical method.

-5)Screening: Separate different size carbon powder.
